Western Digital WD20SDZW Data Recovery

Zero Alpha offers professional data recovery for WD WD20SDZW hard drives. This 2TB Western Digital drive is commonly found in portable storage devices and laptops. Users may experience issues such as failure to detect, bad sectors, or firmware corruption. We provide expert solutions and accept mail in jobs from any location.

Western Digital WD20SDZW-11Z3CS0 Data Recovery with 2060-800067-001 pcb

WD20SDZW Common Problems

  • Drive not detected by the system
  • Bad sectors causing data corruption
  • Clicking or beeping noises from the drive
  • Firmware corruption or failure
  • PCB damage or power-related faults
  • Slow performance and frequent disconnections

WD20SDZW Models

  • WD20SDZW-11JJ8S0
  • WD20SDZW-22JJ8S0
  • WD20SDZW-34JJ8S0

WD20SDZW-11Z3CS0 Data Recovery Case Log

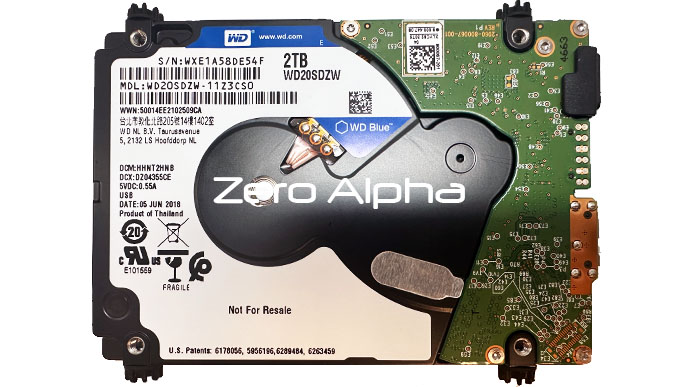

19Sep23: This case is pictured above. The WD20SDZW-11Z3CS0 charger, manufactured on June 4, 2018, has unique issues. It can be detected by the computer, but upon connection, it freezes the PC. This problem is compounded by physical damage, as the hard drive itself is bent. To address these challenges, we utilized Xeltex technology to read the ROM. We successfully unlocked the Self-Encrypting Drive (SED) feature and converted it to SATA. Despite encountering Master Boot Record (MRB) issues and bad sectors, the good news is that the data remains intact, ready for recovery.

Not detecting Western Digital WD20SDZW-11Z3CS0 Data Recovery Caselog

01DEC25: Customer brought in a hard drive that stopped working 6 years ago. The hard drive is not detecting and out of 2TB WD My Passport PN: WDBS4B0020WT-0B. PCB: 2060-800067-001 rev p1.

western digital WD20SDZW-11Z3CS0 data recovery

03Dec25: SED unlock with programmer (using SOIC pogo pin adapter now, much faster). Soldered SATA adapter. Charger family. Comes ready with full ID, has access to first and last sectors, bad sectors in SMART. MRB slow, so block 411 in ROM and reboot. MRB (fast). ID01 and ID02 modifications. Enabled TLER. Backed up whole T2 module (not just areas reading). Locked UA writing. Unblocked mod 411 in ROM and reboot. H0 weak, did not image completely. Imaged H1, H2. No data on H3. Drive would semi-frequently start erroring for all commands (including reads), so had to adjust DE script for read failures - enabled power off/on. Customer happy with the results.
