Western Digital WD7500KMVV 750GB Data Recovery

The WD7500KMVV is a 750GB hard drive commonly found in external enclosures like the My Passport series. These drives are known to fail due to issues with the USB-SATA bridge, firmware corruption, or mechanical faults. At Zero Alpha, we specialise in recovering data from this model, even when it's not detected or making unusual sounds.

Common problems

• Connection Issues: Users often experience difficulties with the USB connection, where the drive may not be recognized by the computer. This can be due to a faulty cable, port issues, or a need for driver updates.

• Power Supply Problems: Some users find that the drive does not receive enough power, especially when connected to certain laptops or USB hubs. This can lead to intermittent disconnections or the drive failing to spin up.

• File System Corruption: Like many external drives, the WD7500KMVV-11A27S2 can suffer from file system corruption, especially if it’s not ejected properly. This may result in data loss or difficulty accessing files.

• Slow Transfer Speeds: Users may report slower-than-expected data transfer rates, which can be frustrating. This could stem from fragmentation, the age of the drive, or the speed of the USB interface being used.

• Physical Damage: As with any external hard drive, physical drops or impacts can lead to malfunctions or complete failure. The drive's portability makes it susceptible to such issues.

• Temperature Sensitivity: Excessive heat can affect the drive's performance and longevity. Users are advised to keep the drive in a cool environment and avoid prolonged use without breaks.

• Software Compatibility: Some users have faced challenges with compatibility across different operating systems, particularly when using it with non-Windows devices.

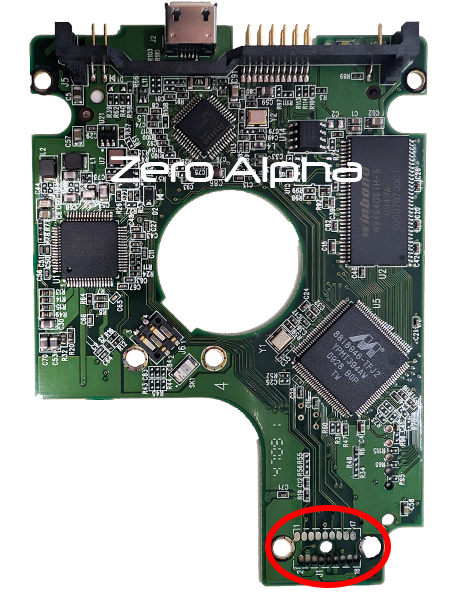

Western Digital WD7500KMVV-11A27S2 Data Recovery Corroded PCB Caselog

30Sept2024 - A customer using the Western Digital WD7500KMVV-11A27S2 Type Mini B USB hard drive began experiencing significant issues with their device, which was traced back to a corroded PCB (printed circuit board). Despite the drive spinning up initially, it would frequently spin down unexpectedly, causing frustration and concern about data loss. After some investigation, they discovered visible corrosion on the PCB, likely due to exposure to moisture or a humid environment. This corrosion interfered with the drive's electrical connections, leading to its erratic behavior.

750GB Damaged platters data recovery caselog

Damaged platters are one of the most serious types of hard drive failure. They occur when the read/write heads physically scrape the surface of the disk, often due to a head crash. This can result in permanent data loss in the affected areas, as the magnetic layer holding the data is destroyed. In severe cases, platter damage can spread if the drive is powered on repeatedly after failure.

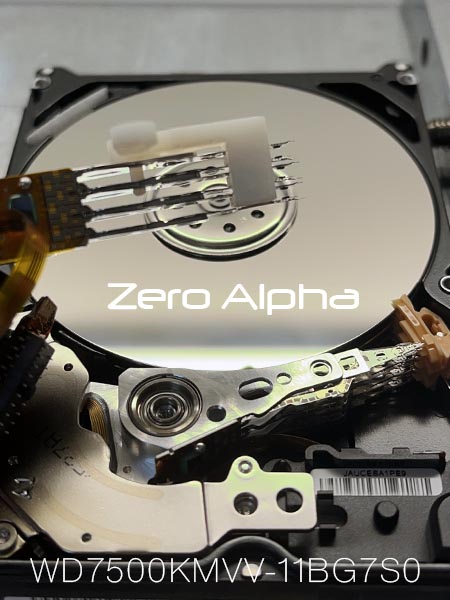

WD7500KMVV-11BG7S0 With Damaged heads data recovery caselog

27Mar25: This hdd has high frequent clicking sound. Also makes a buzzing sound. New heads were required to get data back off this drive.
